Database and R

Creating a Database, and Writing and Retrieving Records

While using a database system is not necessary for our analysis, it is helpful to prepare for scenarios where data might need to be shared with other users or integrated with software such as QGIS. For this reason, it is beneficial to construct a system that allows R to access data stored in a database.

Among the available database systems, PostgreSQL-based PostGIS is one of few options that supports handling geographical data. Therefore, after setting up a Dockerized PostGIS instance, I use it to write and retrieve data instead of saving directly files directly to a directory.

The steps in my data analysis workflow are as follows:

1. Read NetCDF files into R.
2. Crop the necessary data from the original files.
3. Write all processed the database.
4. Clear all data objects when exiting the analysis.
5. Retrieve the necessary data again when resuming the analysis.

Connecting R and PostGIS

• Unfortunately, the odbc package failed to connect to the database in my environment, so I use the RPostgres package instead.

• Additionally, the rpostgis package does not support .rds file format. Therefore, all climate data must be saved as .tif format in advance.

Procedures

Use a database in Docker

docker compose up -d
docker ps

CONTAINER ID   IMAGE                  COMMAND                  CREATED       STATUS       PORTS                                         NAMES
28ce31d499fc   tomishing/postgis:17   "docker-entrypoint.s…"   3 hours ago   Up 3 hours   0.0.0.0:5432->5432/tcp, [::]:5432->5432/tcp   my_postgis

Access to the database, and write objects into the database

library(raster)
library(DBI)
library(RPostgres)
library(rpostgis)
library(R.utils)

# Access to a database

con <- dbConnect(
    RPostgres::Postgres(),
    dbname = "climate",
    user = "postgres",
    password = "postgres",
    host = "localhost",
    port = 5432
)

# Export monthly objects to the database

for (ya in years) {
    for (mon in 1:12) {
        m <- sprintf("%02d", mon)
        pgtablename <- paste0("r", ya, m)
        ar_obj <- get(paste0("ar_", ya))
        rast <- ar_obj[[mon]]
        pgWriteRast(con, c("public", pgtablename),
            rast,
            overwrite = TRUE
        )
    }
    printf("\n%d is successfully imported.\n", ya)
}

Retrieval of data

start_time <- Sys.time()
for (ya in years) {
    filename <- paste0("r_", ya)
    objects <- raster()
    for (mon in 1:12) {
        m <- sprintf("%02d", mon)
        pgtablename <- paste0("r", ya, m)
        object <- brick(pgGetRast(con, pgtablename))
        names(object) <- paste0("m", m)
        objects <- addLayer(objects, object)
        assign(filename, objects)
    }
    printf("\n%d is successfully imported.\n", ya)
}
end_time <- Sys.time()
time_elapsed <- round(end_time - start_time, 2)
time_elapsed

rm(list = ls(pattern = "^r_")

In my environment, it took over 8 minutes to import all precipitation data from PostGIS into R. Given the presence of additional climate datasets, using a database for analysis may not be practical. So far, saving the data to a local disk in RDS or TIFF format has proven more straightforward and convenient. Alternatively, SQL queries within the database can be considered, though they may not be efficient unless the area of interest (AOI) is well defined. However, using the database could be beneficial if your main analysis involves vector data.

Some useful functions

# Database
dbListTables(con) # a list of tables
dbGetQuery(con, "select * from annual_rain") # get the query result
dbSendQuery(con, "drop table if exists annual_rain ")
dbDrop(con, "a_rain") # Drop a table

# PostGIS
pgPostGIS(con) # check if PostgreSQL is enabled the extentions
pgListGeom(con, geog = TRUE) # list vector data table
pgListRast(con) # list raster data table
pgWriteRast(con, c("schema", "testraster"), test)

Connecting PostGIS from QGIS

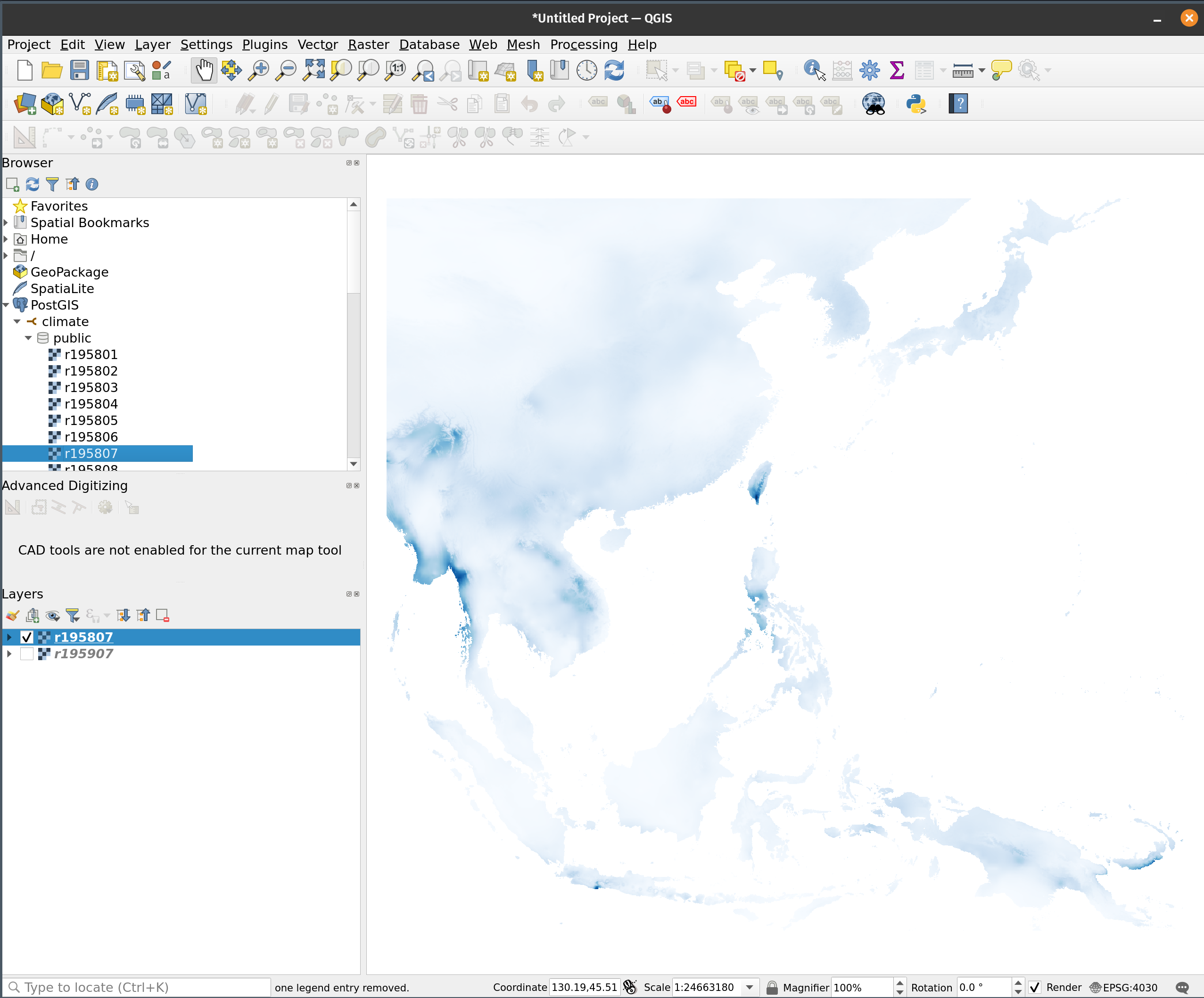

QGIS connects PostGIS climate database
